| Geometry by Tom Kellog |  |
| Merlin MTS325 size-specific seamless titanium tubing | |
| Large-diameter 7/8-inch V-Bend chainstays | |
| Machined and engraved Merlin 6-4 titanium vertical dropouts | |
| Thirteen sizes: 45-63 cm | |
| 45 & 47 cm have 650B wheels | |
| Preliminary specifications; subject to change without notice |
|

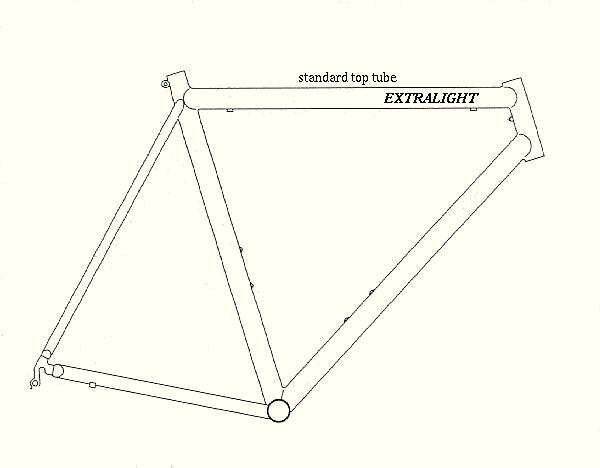

Merlin Road & Extralight: Standard Top Tube |
|||||||||||||
| Frame Size (cm., ctr-top) | 45 | 47 | 49 | 51 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 61 | 63 |
|
|
|||||||||||||
| Frame Size (cm., ctr-ctr) | 43.5 | 45.5 | 47.5 | 49.5 | 51.5 | 52.5 | 53.5 | 54.5 | 55.5 | 56.5 | 57.5 | 59.5 | 61.5 |
| Head angle (degrees) | 71.5 | 71.5 | 72.5 | 73.0 | 73.0 | 73.0 | 73.5 | 73.5 | 73.5 | 73.5 | 74.0 | 74.0 | 74.0 |
| Seat angle (degrees) | 74.0 | 74.0 | 74.0 | 74.0 | 74.0 | 73.5 | 73.5 | 73.0 | 73.0 | 73.0 | 73.0 | 72.5 | 72.5 |
| Top tube (cm) | 51.0 | 51.5 | 52.1 | 53.3 | 54.5 | 55.0 | 55.5 | 56.1 | 56.5 | 57.1 | 57.5 | 58.5 | 59.5 |
| Chainstay (cm) | 41.3 | 41.3 | 41.6 | 41.3 | 40.6 | 41.0 | 41.0 | 41.0 | 41.0 | 41.0 | 41.0 | 41.6 | 41.6 |
| Wheelbase (cm)* | 96.4 | 97.0 | 97.1 | 97.4 | 98.0 | 98.0 | 98.0 | 98.1 | 98.5 | 99.0 | 99.0 | 100.2 | 101.2 |
| Standover height (cm) | 69.6 | 71.5 | 73.8 | 76.0 | 77.9 | 78.6 | 79.7 | 80.3 | 81.4 | 82.3 | 83.4 | 85.5 | 87.5 |
| Bottom bracket drop (cm) | 4.8 | 4.8 | 7.3 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 6.7 | 6.7 |
| Head tube length (cm) | 7.5 | 9.6 | 6.6 | 8.6 | 10.5 | 11.4 | 12.0 | 12.8 | 13.8 | 14.8 | 15.6 | 17.8 | 19.8 |
| Steerer length (cm) | 12.1 | 14.2 | 11.2 | 13.2 | 15.1 | 16.0 | 16.6 | 17.4 | 18.4 | 19.4 | 20.2 | 22.4 | 24.4 |
| Fork rake (cm)* | 3.8 | 3.8 | 4.5 | 4.5 | 4.5 | 4.5 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| EL frame weight (pounds) | 2.31 | 2.37 | 2.42 | 2.47 | 2.55 | 2.60 | 2.66 | 2.68 | 2.69 | 2.79 | 2.92 | 3.09 | 3.28 |
| Road frame weight (pounds) | 2.62 | 2.68 | 2.74 | 2.86 | 2.97 | 3.02 | 3.06 | 3.23 | 3.39 | 3.50 | 3.61 | 3.90 | 4.14 |
|
*With recommended fork rake | |||||||||||||
