Merlin Taiga

High on the edge of the world between the arctic tundra and the great northern coniferous forest lies the taiga. This rough wilderness is the habitat of the Taiga merlin, the fastest and rarest of all merlin falcons.
Merlin MTS325 & Grade 4
seamless titanium tubing



Three sizes:
15, 17, 19 inches



Frame weight:
3.57-3.94 lbs.
(1.62-1.79 kg)



Suspension-adjusted geometry



1 1/8-inch headtube



Top-mount cables



Merlin 6-4 titanium
vertical dropouts




Merlin 7/8-inch Symmetribend chainstays



Merlin Centermount brakes



Off-site frame reviews:
Mountain Bike Review

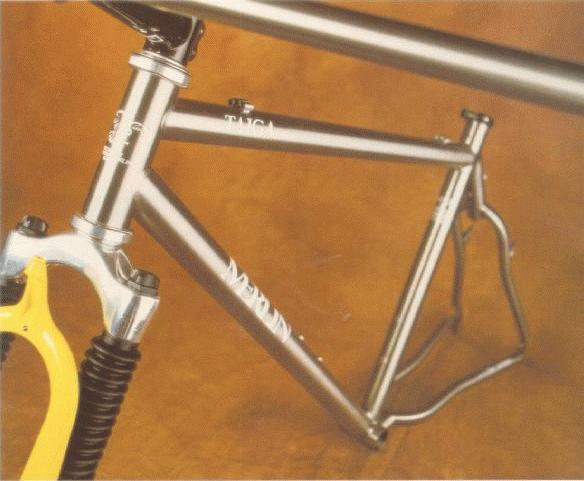

Like its namesake, the Merlin Taiga is endowed with exhilarating performance that sets the highest standards in its class. Crafted from a new blend of Merlin MTS325 certified titanium and Grade 4 seamless ti tubing, the Taiga has been created to excel in even the most demanding off-road environments.

In the Taiga you will find the proven design features that have carried Merlin riders to countless international racing victories. Merlin's championship-winning geometry is used in all sizes to assure proper fit and balance. The Taiga's full sloping top tubes are generously proportioned to center your weight within the wheelbase for high-speed stability, while the suspension-adjusted head angles guarantee light, accurate steering response at any speed.

Down below, Merlin's famous large-diameter 7/8-inch chainstays are deployed in a new monostay configuration. Their Symmetribend shape accommodates all standard and compact-drive cranksets, yet they can also swallow 2.5-inch knobbies with room to spare. And their high lateral rigidity yields crisper handling, less tail-wagging, and a more efficient drivetrain than the thinner says found on lesser bikes.

The Taiga's 3/4-inch S-Bend seatstays also employ a monostay design for simplicity, light weight and lateral rigidity. The "give" in the stays provides better traction during steep climbs, and better wheel tracking over rough trails. Merlin's exclusive Centermount cantilever bosses sit squarely atop the stays for rock-solid brake action.

Anchoring the rear triangle are Merlin's trademark 6-4 vertical dropouts, the strongest available anywhere in the world.

What is most surprising about the Taiga, though, is its price. Simply put, pure Merlin performance has never been so affordable.

Indeed, the Taiga is an unbeatable value. More important, it is a race-bred Merlin which will deliver that value for years to come.


Merlin Taiga
Frame Size (in., ctr-ctr) 15.0 17.0 19.0

Head angle (degrees)* 71.0 71.0 71.5
Seat angle (degrees)* 73.5 73.0 72.5
Nominal top tube (in.) 22.00 23.00 23.75
Chainstay (in.) 16.875 16.875 16.875
Wheelbase (in.)* 40.9 41.9 42.9
Standover height (in.)* 28.2 30.5 31.5
Bottom bracket height (in.)* 11.6 11.8 11.8
Head tube length (in.) 4.0 4.5 5.5
Steerer length (in.) 5.75 6.25 7.25
Frame weight (pounds) 3.57 3.73 3.94

*With RockShox Judy SL or Manitou 4 and rider weight aboard
