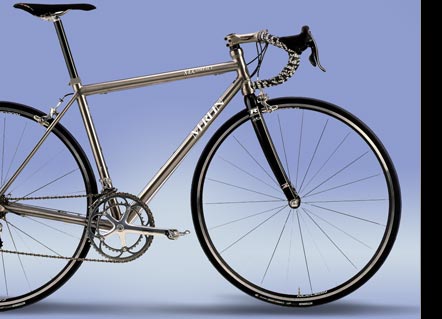

Since its introduction, the Merlin Extralight bicycle has reigned in beauty and performance over all rivals. Now, Merlin Metalworks has pushed perfection beyond all limits to create the new XLCompact (Extralight Compact). Like the original, the XLCompact is crafted of MTS (Merlin Tube Specification) size-specific 3Al-2.5V double-butted titanium tubing. The compact geometry enhances the stiffness of the frame to provide unmatched power and climbing ability while keeping weight to an absolute minimum. Further reducing weight, the XLCompact's 1.125" head tube is designed with an integrated headset eliminating cumbersome headset cups. Like all Merlin bicycles, the XLCompact is sculpted by hand with the promise of premium materials and flawless welds. With attention given to the most intricate detail, the XLCompact sets new standards for quality, weight and performance.
1.125" Head tube with integrated headset reduces weight by eliminating traditional headset cups.

Compact frame design offers unmatched stiffness and makes this bike even lighter.

Merlin MTS size-specific 3Al-2.5V double-butted tubing.

Merlin 6Al-4V titanium machined dropouts.

Large diameter 7/8" butted V-bend chainstays for drivetrain stiffness.

Geometry by Tom Kellogg

Optional custom geometry through Merlin's "Made-to-Measure" program.


FRAME SIZE (CM, CTR-TOP)

S

M

ML

L

XL

FRAME SIZE (CM, CTR-CTR, virtual)

51.5

53.5

55.5

57.5

59.5

HEAD ANGLE (DEGREES)

73.0

73.5

73.5

74.0

74.0

SEAT ANGLE (DEGREES)

74.0

73.5

73.0

73.0

72.5

TOP TUBE (CM) virtual

54.5

55.5

56.5

57.5

58.5

FRAME WEIGHTS (LBS)

2.65

2.7

2.8

2.9

3.1
